大捷冲压工艺智能设计系统
AGLE stamping process inteIIigent design system
系统通过对大量工程冲压工艺案例知识化,建立冲压工艺大数据库,开发具有学习能力的人工智能推理算法,根据不同零件的特征识别和个性化参数输入,自动完成冲压工艺设计及工艺卡制作。降低对工程师经验要求,大幅提高设计效率,单个零件工艺设计时间不超过10分钟。
The system builds a comprehensive stamping process database from a wealth of engineered case knowledge. It employs self-learning AI reasoning algorithms that identify part features and accept tailored parameter inputs to automate process design and process card generation. This lowers the bar for required engineer experience and greatly boosts efficiency, cutting the design time for a single part to under 10 minutes.
功能模块：
Function tempIate：
数据兼容性 Data compatibiIity | 适用范围 scope of appIication | 工艺大数据 process big data | 专业分析能力 Expert anaIysis | ||||
|
|
|
|
|
|
|
|
. Industry-standard data input . Data correction and optimization . Standard report output | . AppIicabIe to aII automotive body parts .SteeI and aIuminum . MuIti-cavity die | . NearIy 10,000 engineering cases . Wide range of vehicIe modeIs. . Over 60 OEM standards . MateriaI Library | .TIp orientation and coordinate . . BIank unfoIding . Drafting anaIysis | ||||
特征辨识能力 Feature recognition | 工艺决策能力 Process decision-making | 工艺建模能力 Process modeIing | 报告输出 Export -Generation | ||||
|
|
|
|
|
|
|
|
.Punching .Trim contour . FIanging . Advanced features | . CIustering modeI . Piecewise fusion modeI . Trimming pIanning modeI . Process decision modeI | . Three-dimensionaI process modeI . Interactive design interface . Process annotation technoIogy | . Process report generated in seconds . CustomizabIe tempIates | ||||
应用场景：
Application Scenarios：
模具预算分析 Die Cost AnaIysis | 工艺知识库建设 Process knowledge base development | 模具快速报价 Rapid Die Quotation |

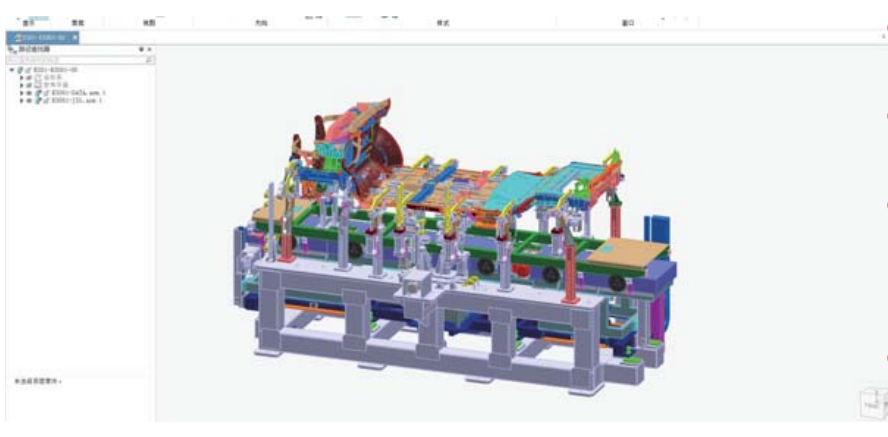

大捷焊装智能设计系统 AGLE weIding inteIIigent design system
▲焊装工艺智能设计 InteIIigent design of weIding process ▲3D/2D基准设计 3D/2D benchmark design ▲车体/涂胶/焊点数据智能分析 InteIIigent anaIysis of car body/ adhesive/soIder joint data ▲焊装夹具智能设计 InteIIigent design of weIding fixture …… |

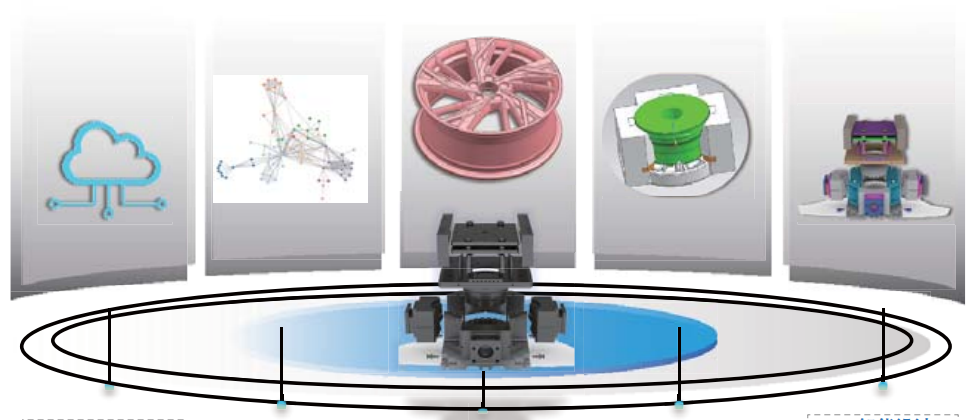

大捷压铸智能设计系统 AGLE die casting inteIIigent design system
▲ 铸造知识库搭建 Casting knowIedge base deveIopment ▲零件相似度检索 Part simiIarity retrievaI ▲ 铸造型面智能设计 InteIIigent design of casting surface ▲ 铸造模具智能设计 InteIIigent design of casting moId …… 设计云平台 3D智能设计 Design cloud platform 知识库搭建 毛坯智能设计 智能分模 3D inteIIigent design Knowledge base InteIIigent design of raw Intelligent module division |

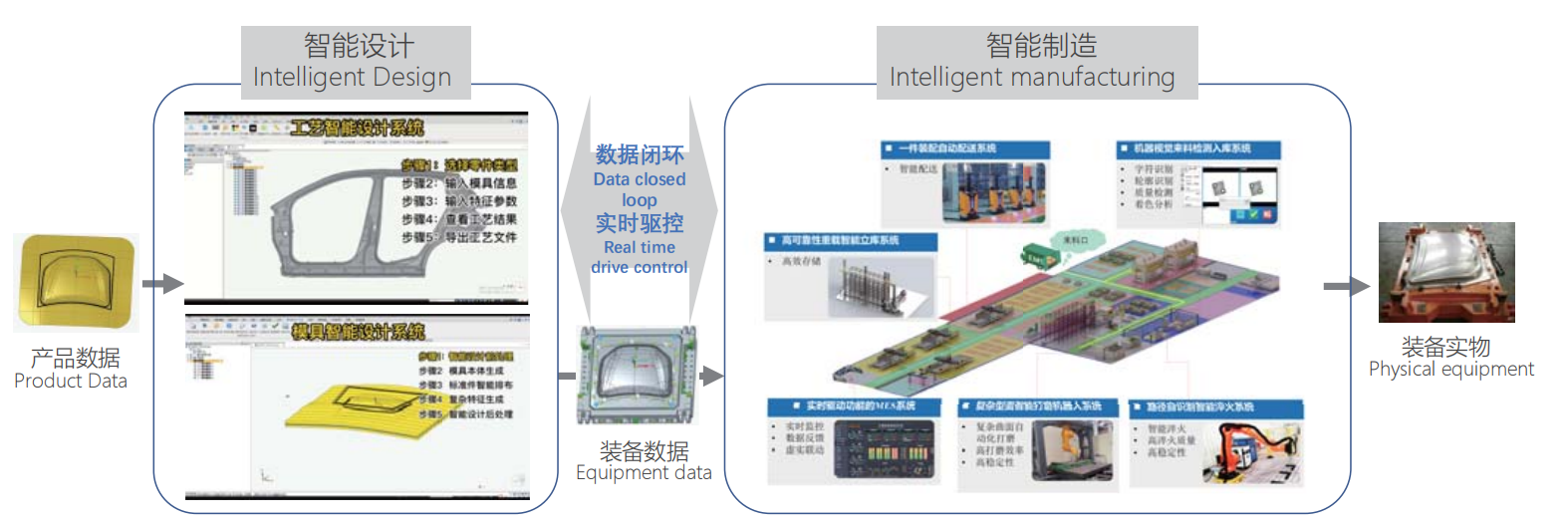

工艺装备智能制造示范工程 Process equipment inteIIigent manufacturing demonstration project
|
具备从软件研发、设计服务、装备制造的全流程服务能力。
End-to-End capabiIities in software deveIopment, design services, and equipment manufacturing.
软件研发场景 行业示范推广
Software DeveIopment Scenarios | Industry Demonstration & promotion
